TDP serie 1000 Mulcher

Application

Vineyard and orchard

Category

Thick pruning
Shoots

Download the data sheet

Reversible mulcher for pruning and branches

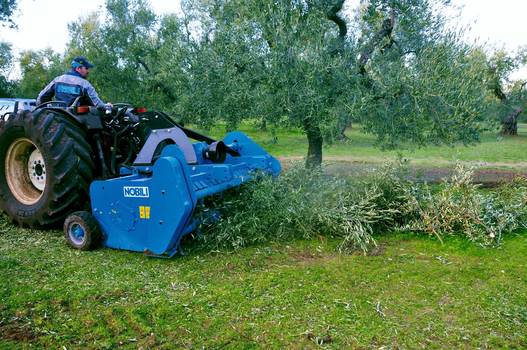

For shredding pruning residues without stepping on the windrows

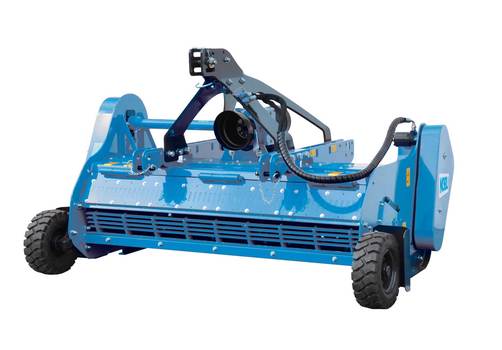

TDP series 1000 mulchers are provided with two hydraulic pick-ups for lifting the pruning remains. Suitable for tractors ranging from 70 to 150 HP, they can be front fitted, rear fitted and coupled to reverse drive tractors, simply by changing the hitch position.

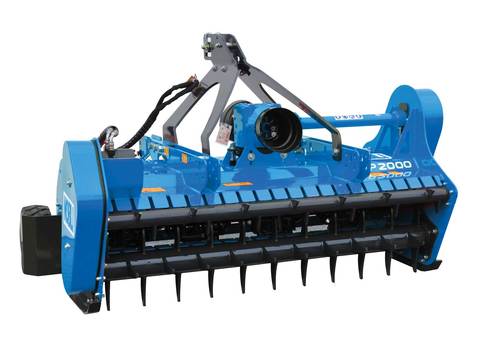

Of heavy-duty construction, the TDP series 1000 range is equipped with the XP rotor for an homogeneous and fine shredding product that facilitates working on large windrows. A peculiar feature of the XP rotor are the toothed supports for knife pins, welded on the rotor following a double spiral. When shredding large windrows or big diameter branches – when knives recoil back due to the beating – the toothed supports make up for the temporary absence of hammers, acting themselves as fixed blades for the wood. Thanks to these features TDP series 1000 can shred finely in one single pass large and voluminous pruning windrows at high working speed and productivity.
The mulcher is constructed in compliance with European Regulations.

Technical features   TDP 1600 TDP 1800 TDP 2000 TDP 2250
Connecting position Reversibile Reversibile Reversibile Reversibile
Working width mm 1600 1800 2000 2250
Engine speed pdp rpm 1000 1000 1000 1000
Tractor horse power HP 90-185 100-185 110-185 120-185
KW 66-136 74-136 80-136 88-136
Rotor speed rpm 2400 2400 2400 2400
Pruning residues < < 12 cm < 12 cm < 12 cm < 12 cm
Blades 02X 84 96 108 120
Measures A 2050 2250 2450 2700
B 1560 1560 1560 1560
C 1400 1400 1400 1400
Weight KG 1300 1450 1620 1820

Pruning among the rows are causing you problems?
RELY ON NOBILI MULCHERS FOR VINEYARDS AND ORCHARDS
