BC serie 1000 Mulcher
For the shredding of grassy cultivations in open field and green spaces

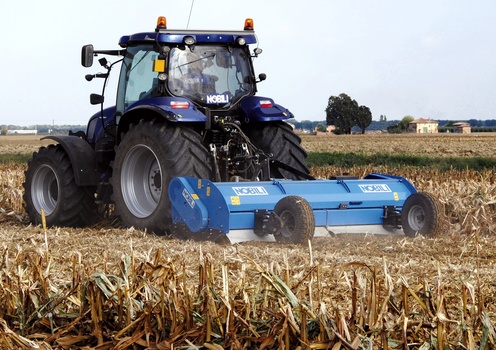

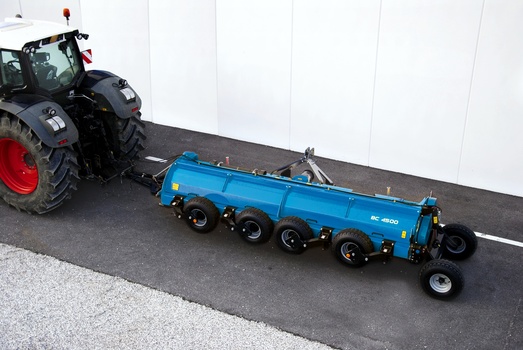

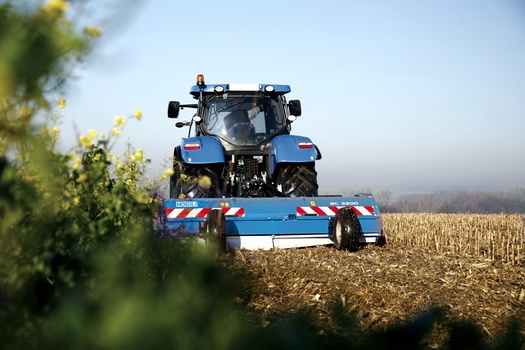

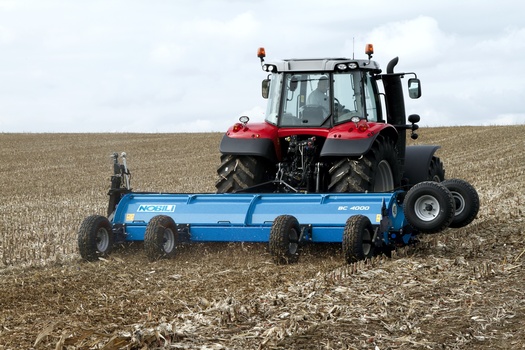

For the shredding of crop residues on open field cultivations and large green areas.Nobili BC series 1000 mulchers are tractor-mounted machines to be fitted to the three-point linkage of the hydraulic lift of tractors from 90 and 450 HP. Ideal for the shredding of straw, corn stalks, sunflower stubbles, sorghum, rapeseed, cotton, beet and potato leaves and crop residues of all kinds, the BC series 1000 mulchers are supported by roller, wheels and also skids adjusting their working height. The BCR 2800 are available as reversible version for tractors with both front- and rear-mount.
The mulcher is constructed in compliance with EC Regulations.
| Technical features | BC 2800 | BC 3200 | BC 4000 | BC 4500 | |
|---|---|---|---|---|---|
| Connecting position | Rear | Rear | Rear | Rear | |
| Lateral displacement | mm | 450 (optional) | |||
| Working width | mm | 2792 | 3231 | 4212 | 4517 |
| Engine speed pdp | rpm | 1000 | 1000 | 1000 | 1000 |
| Tractor horse power | HP | 100 - 200 | 120 - 300 | 140 - 350 | 150 - 350 |
| KW | 74 - 147 | 88 - 221 | 103 - 257 | 110 - 257 | |
| Rotor speed | rpm | 1863 | 1850 | 1714 | 1530 |
| Blades | 01 | 64 | 72 | 88 | 104 |
| 01/P | 64 + 32 | 72 + 36 | 88 + 44 | 104 + 52 | |
| 06/K | 32 | 36 | 44 | 52 | |
| 012 | 64 + 32 | 72 + 36 | 88 + 44 | 104 + 52 | |
| Measures | A | 3000 | 3480 | 4350 | 4930 |
| B | 1750 | 1750 | 1750 | 1750 | |
| C | 850 | 850 | 850 | 850 | |
| Weight | KG | 1430 | 1590 | 2400 | 2770 |
