Ventis T Sprayer
Pneumatic low volume sprayer

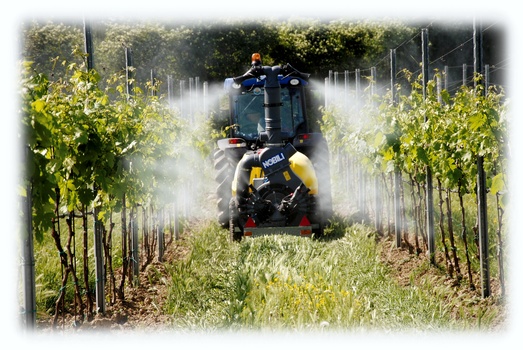

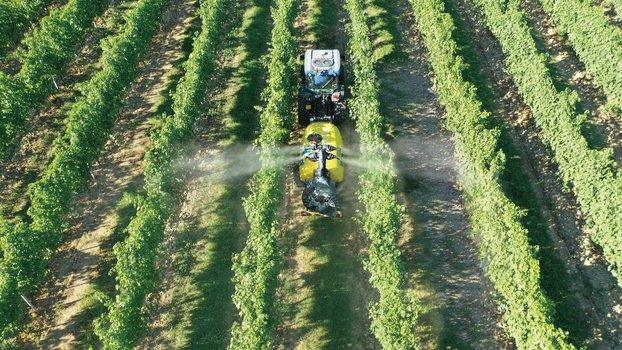

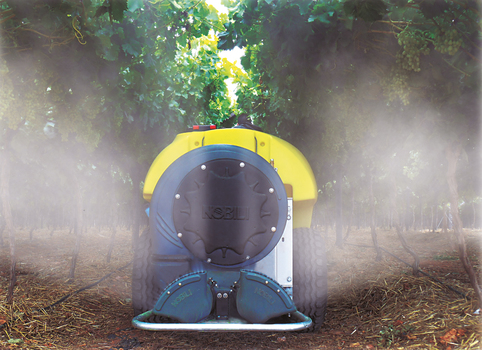

Pneumatic trailed sprayers, ideal for low volume treatments in vineyards, orchards and olive groves. Nobili fans, esuring an air speed above 120 mls, allow VENTIS sprayers to obtain a very fne pulverisation of the spraying mixture and an excellent penetration into vegetation. Available with interchangeable spray heads to meet the work requirements of different crops. Polyethylene tanks of 1000, 1500 and 2000 liters, all with three completely separate tanks.
| Technical features | Ventis 501A-600 T | Ventis 501A-800 T | Ventis 501A-1001 T | Ventis 502-1001 T | Ventis 501A-1500 T | Ventis 502-1500 T | Ventis 501A-2000 T | Ventis 502-2000T | |
|---|---|---|---|---|---|---|---|---|---|
| Lt. capacity | lt | 600 | 800 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 |
| Ø | 500 D.A. | 500 D.A. | 500 D.A. | 500 D.A. | 500 D.A. | 500 D.A. | 500 D.A. | 500 D.A. | |
| rpm | 4180 | 4180 | 4180 | 4180 | 4180 | 4180 | 4180 | 4180 | |
| m/sec | 120 | 120 | 120 | 185 | 120 | 185 | 120 | 185 | |
| mc/h | 7800 | 7800 | 7800 | 14000 | 7800 | 14000 | 7800 | 14000 | |
| Power | HP | 50-70 | 50-70 | 50-70 | 80-90 | 50-70 | 80-90 | 50-70 | 80-90 |
| KW | 37-52 | 37-52 | 37-52 | 59-66 | 37-52 | 59-66 | 37-52 | 59-66 | |
| Measures | A mm | 3390 | 3390 | 3900 | 3900 | 4180 | 4180 | 4240 | 4240 |
| B mm | 1200 | 1230 | 1250 | 1250 | 1430 | 1430 | 1560 | 1560 | |
| C mm | 1300 | 1230 | 1340 | 1340 | 1450 | 1450 | 1560 | 1560 | |
| Weight | KG | 650 | 700 | 740 | 770 | 870 | 900 | 1140 | 1170 |
