Jet T Sprayer

Applications

Category

Trailed

Type of spraying

Big air thrust \ Cannon

Download the data sheet

Tractor trailed sprayers

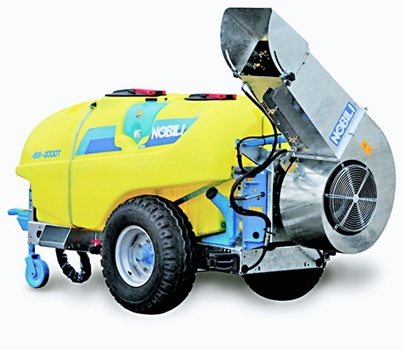

Tractor trailed mist blower with centrifugal turbine and unilateral air outlet. The Jet T series is ideal for full-field treatments, greenhouse cultivation and tall trunk trees.
The centrifugal turbine is equipped with a two-speed gearbox ensuring a powerful and measured thrust of air. The air outlet inclination is easily and practically hydraulic
adjustable. Tanks of 1000 and 2000 liters, complete with hand washing as well as circuit washing tank.
The JET-SR series has a conveyor with swivel hydraulically adjustable in all directions for an excellent distribution and penetration of chemical products.

Technical features   Jet 455-1001 T Jet 455-2000 T Jet 455-1001 TSR Jet 455-2000 T SR
Lt. capacity lt 1000 2000 1000 2000
rpm = 540 bar 0-50 litri/1’ 140 140 140 140
Ø 450 450 435 435
rpm 2160 2160 2430 2430
m/sec 90 90 80 80
mc/h 62500 62500 60000 60000
Horizontal Range m 50 50 40 40
Vertical Range m 25 25 20 20
Power HP 60-70 60-70 80-100 80-100
KW 45-52 45-52 60-75 60-75
Measures A mm 3150 3840 3150 3900
B mm 1200 1570 1200 1570
C mm 1330 1500 1830 2000
Weight KG 570 780 650 860
