EURO T Sprayer

Applications

Vegetable cultivations
Cereal cultivations
Trellis orchard
Olive grove
Poplar, chestnut, tall trunk trees

Category

Trailed

Type of spraying

Axial fan

Download the data sheet

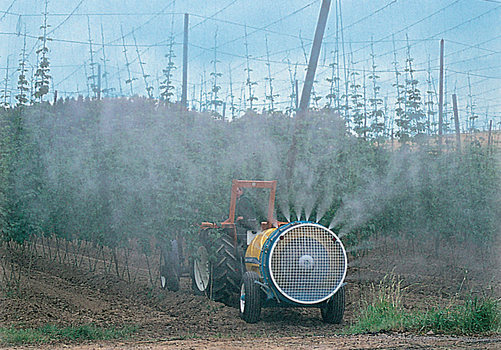

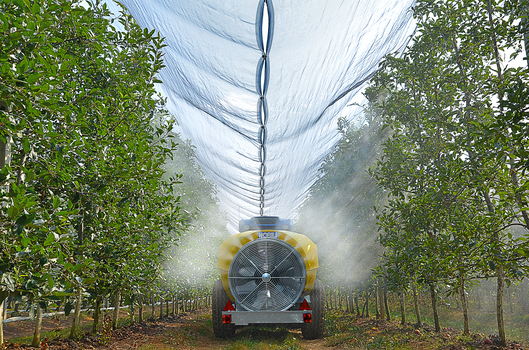

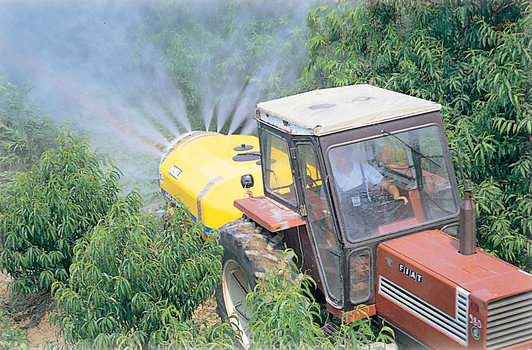

Trailed mist blower

Trailed mist blower with high volume air-blast for full-field crops, vineyards, orchards, citrus groves and tall trunk trees. The Euro T series is equipped with circuit washing tank, hand washing unit, external suction filter with anti-emptying valve, nozzles with off position mounted on vanes with drop stop device, two-speed gearbox plus neutral, fan with clutch and variable pitch blades. “Super” version with twin port. Fiberglass tanks to hold 3000 and 4000 liters.

Technical features   90-3000 T Super 105-3000 T Super 105-4000 T Super
Lt. capacity lt 3000 3000 4000
rpm = 540 bar 0-50 litri/1’ 140 140 140
Ø 900 1050 1050
rpm 2160 2160 2160
m/sec 44 57 57
mc/h 62500 77500 77500
Horizontal Range m 4-12 4-15 4-15
Vertical Range m 2-8 3-12 3-12
Power HP 70-80 70-100 70-100
KW 52-59 52-74 52-74
Measures A mm 4025 4030 4880
B mm 1755 1755 1755
C mm 1595 1595 1750
Weight KG 890 910 1190

Our goal is to protect your crops at the best
