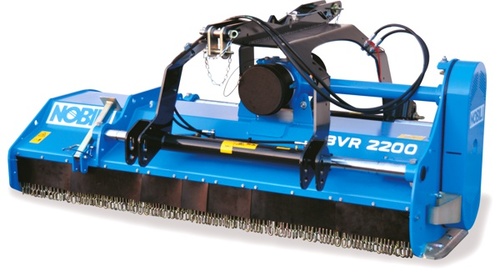

BVR serie 1000 Mulcher
Reversible mulcher for pruning and branches

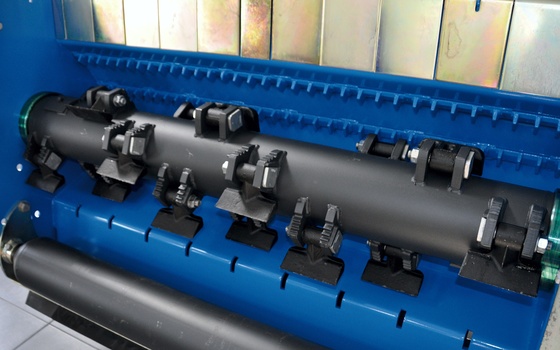

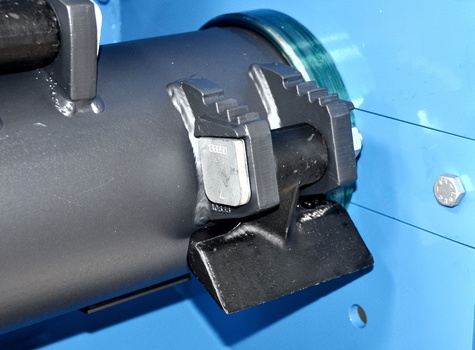

The BVR serie 1000 mulchers are reversible mulchers to be fitted to the front and rear threepoint linkage of the ractor lift. Ideal to shred large volumes of pruning with big diameter branches, bushes and green areas. BVR serie 1000 mulchers are built with overdimensioned components; equipped with heavy hammers, three counter-knives and a rotor with notched tool holders that ensure an optimal shredding quality on wood.Supported by a rear roller with removable ends; collection rakes and front wheels can be fitted as optional equipment. The mulchers BVR serie 1000 are equipped with hydraulic axial offset and double hood for maximum robustness and safety in work.
The mulcher is constructed in compliance with the European regulations.
| Technical features | BVR 1600 | BVR 1800 | BVR 2000 | BVR 2200 | |
|---|---|---|---|---|---|
| Connecting position | Reversibile | Reversibile | Reversibile | Reversibile | |
| Lateral displacement | mm | 703 - 887
478 - 1112 |
870,5 - 899,5
449,5 - 1320,5 |
960,5 - 989,5
539,5 - 1410,5 |
1029,5 - 1100,5
579,5 - 1550,5 |
| Working width | mm | 1540 | 1721 | 1900 | 2078 |
| Engine speed pdp | rpm | 540 - 1000 | 540 - 1000 | 540 - 1000 | 540 - 1000 |
| Tractor horse power | HP | 65-130 | 70-130 | 75-130 | 80-130 |
| KW | 48-96 | 51-96 | 55-96 | 58-96 | |
| Rotor speed | rpm | 2325 - 2235 | 2325 - 2235 | 2325 - 2235 | 2325 - 2235 |
| Pruning residues | < | < 10 cm | < 10 cm | < 10 cm | < 10 cm |
| Blades | 06/L | 18 | 20 | 24 | 24 |
| Measures | A | 1765 | 1945 | 2125 | 2305 |
| B | 1300 | 1300 | 1300 | 1300 | |
| C | 1060 | 1060 | 1060 | 1060 | |
| Weight | KG | 940 | 1055 | 1112 | 1200 |
