BV serie 1000 Mulcher

Application

Vineyard and orchard

Category

Grass, vine and kiwi pruning
Shoots

Download the data sheet

Mulcher for pruning and branches

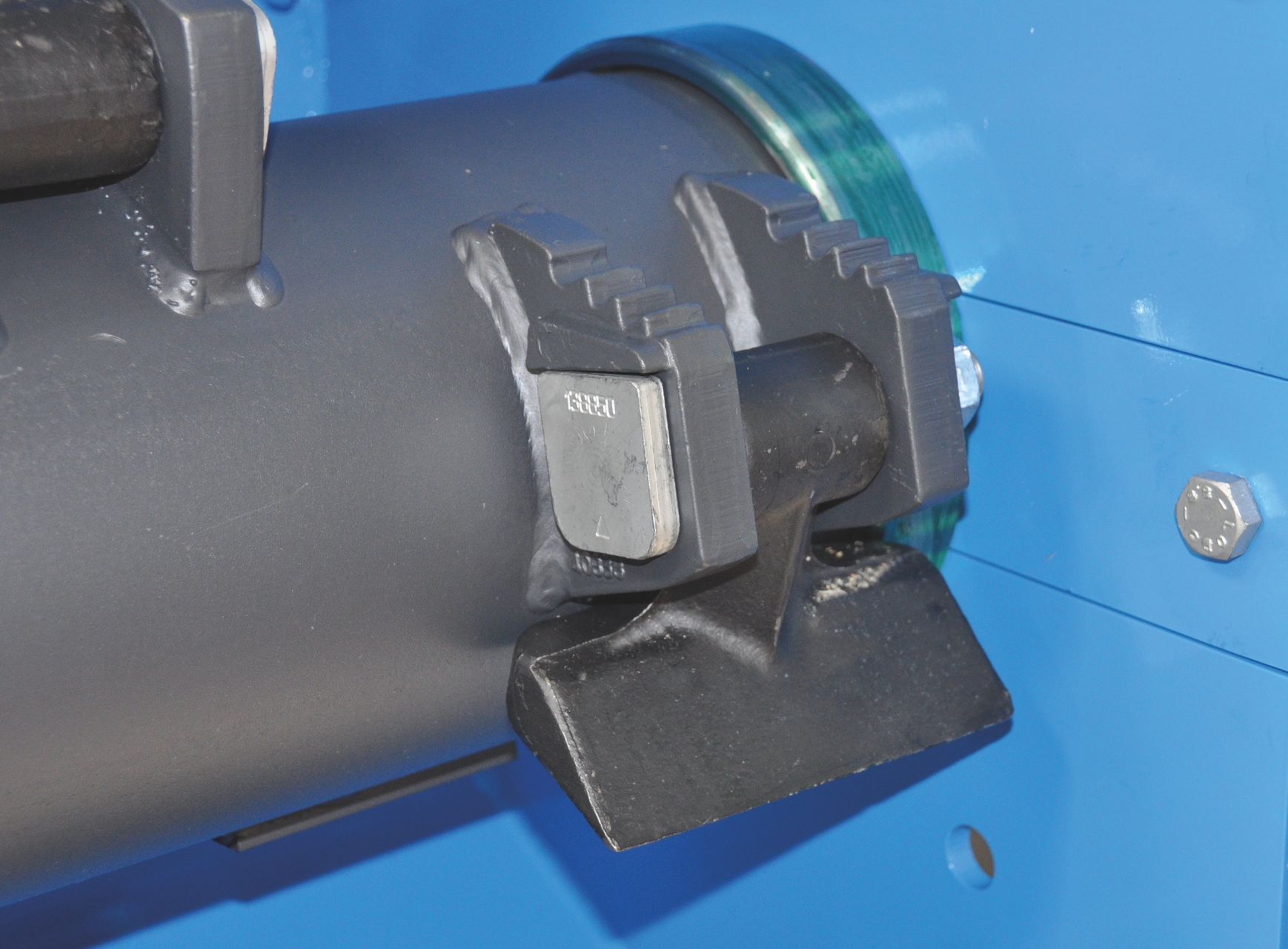

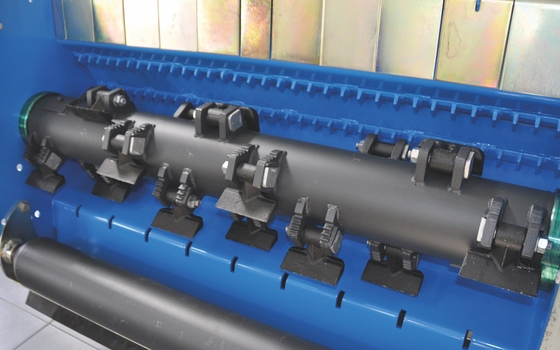

The BV serie 1000 mulchers are mulchers to be fitted to the front and rear three-point linkage of the tractor lift. Ideal to shred large volumes of pruning with big diameter branches, bushes and green areas. BV serie 1000 mulchers are built with overdimensioned components; equipped with heavy hammers, three counter-knives and a rotor with notched tool holders that ensure an optimal shredding quality on wood.
Supported by a rear roller with removable ends; collection rakes and front wheels can be fitted as optional equipment. The mulchers BV serie 1000 are equipped with hydraulic axial offset and double hood for maximum robustness and safety in work. The mulcher is constructed in compliance with the European regulations.

Technical features   BV 1800 BV 2000 BV 2200 BV 2400
Connecting position Rear Rear Rear Rear
Lateral displacement mm 450 450 450 520
Working width mm 1770 1950 2130 2370
Engine speed pdp rpm 540 540 540 540
Tractor horse power HP 70-130 75-130 80-130 85-130
KW 51-96 55-96 58-96 62-96
Rotor speed rpm 2325 2325 2325 2325
Pruning residues < < 10 cm < 10 cm < 10 cm < 10 cm
Blades 06/L 18 24 24 24
Measures A 1945 2125 2305 2550
B 1300 1300 1300 1300
C 1060 1060 1060 1060
Weight KG 900 970 1040 1140
