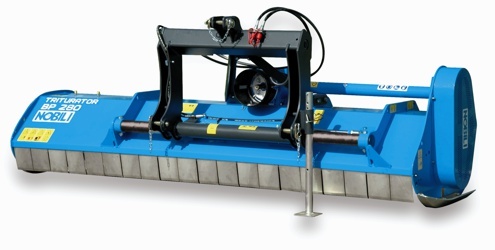

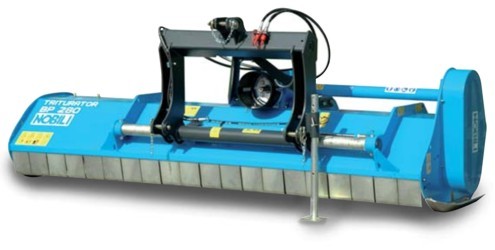

BP serie 100 Mulcher

Application

Low-body profile multi-purpose mulchers

Category

Grass, vine and kiwi pruning
Grass, fibrous and wood stalks, bushes
Straw, corn, rice
Broad green areas
Shoots
Grass, meadows, parks, gardens

Download the data sheet

Multi-purpose mulcher

For the shredding on green areas, grassy cultivation, corn and bushes.

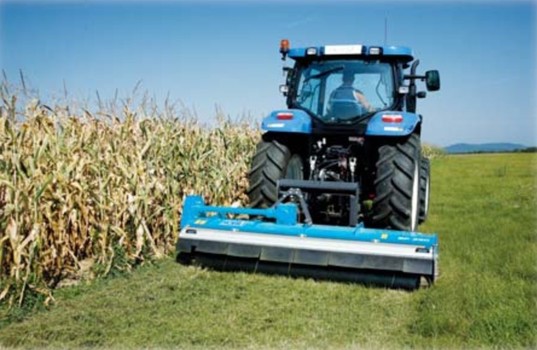

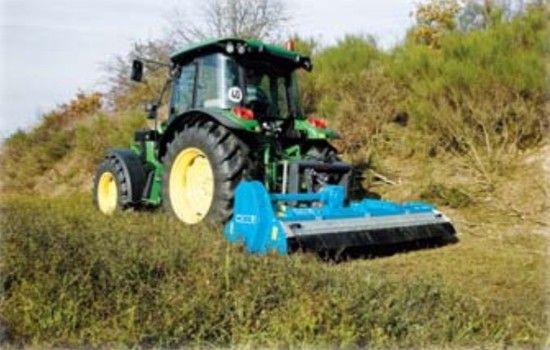

BP mulchers are tractor-mounted machines to be fitted to the three-point linkage of the rear tractor lift. Ideal to shred grass, bushes, pruning, corn and for the maintenance of wide green areas and fallow lands. Multi-purpose and sturdy, BP mulchers are supported by a roller or wheels adjusting the working height. The BP range is equipped with a rotor with eight rows of knife supports and two counter-knives that, together with the roller position, provide the best cut and the reduction of the power absorption. The BP series 10 are available both with fixed coupling and with hydraulic offset, while the BP series 100 are equipped with a strong hydraulic offset. The BP series 1000, in combination with the BPR 280 and BPR 305 models, guarantee high productivity both with front PTO and reverse drive tractors. Nobili mulchers are built in compliance with European regulations.

Technical features   BP 240 BP 280 BP 305
Connecting position Rear Rear Rear
Lateral displacement mm 1187 - 1187
607 - 1767
1397 - 1397
816 - 1977
1517 - 1517
937 - 2097
Working width mm 2374 2793 3034
Engine speed pdp rpm 540/1000 540/1000 540/1000
Tractor horse power HP 80-175 90-175 100-175
KW 59-129 66-129 74-129
Rotor speed rpm 1833/1960 1833/1960 1833/1960
Pruning residues < < 5 cm < 5 cm < 5 cm
Blades 01 48 56 64
06 24 28 32
Measures A 2548 2998 3343
B 1290 1290 1290
C 525 525 525
Weight KG 820 900 950

Many different crops and material to mulch?
NOBILI POLYVALENT MULCHERS ARE THE BEST SOLUTION

contact us
