Application

Low-body profile multi-purpose mulchers

Category

Grass, vine and kiwi pruning
Grass, fibrous and wood stalks, bushes
Broad green areas
Roadsides
Shoots
Grass, meadows, parks, gardens

Download the data sheet

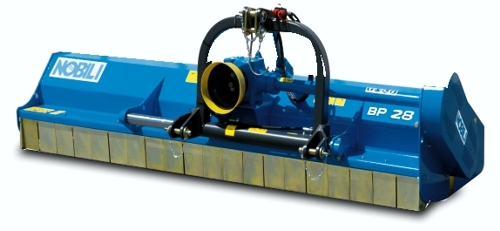

Multi-purpose mulcher

For the shredding on green areas, grassy cultivation, corn and bushes.

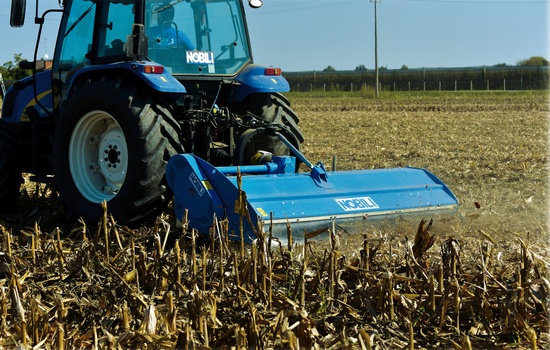

BP mulchers are tractor-mounted machines to be fitted to the three-point linkage of the rear tractor lift. Ideal to shred grass, bushes, pruning, corn and for the maintenance of wide green areas and fallow lands. Multi-purpose and sturdy, BP mulchers are supported by a roller or wheels adjusting the working height. The BP range is equipped with a rotor with eight rows of knife supports and two counter-knives that, together with the roller position, provide the best cut and the reduction of the power absorption. The BP series 10 are available both with fixed coupling and with hydraulic offset, while the BP series 100 are equipped with a strong hydraulic offset. The BP series 1000, in combination with the BPR 280 and BPR 305 models, guarantee high productivity both with front PTO and reverse drive tractors. Nobili mulchers are built in compliance with European regulations.

Technical features   BP 24 FIX BP 28 FIX BP 30 FIX BP 24 BP 28 BP 30
Connecting position Rear Rear Rear Rear Rear Rear
Lateral displacement mm 1187 - 1187 1396 - 1396 1517 - 1517 1187 - 1187
737 - 1637
1396 - 1396
946 - 1846
1517 - 1517
1067 - 1967
Working width mm 2374 2793 3034 2374 2793 3034
Engine speed pdp rpm 540/1000 540/1000 540/1000 540/1000 540/1000 540/1000
Tractor horse power HP 80-150 90-150 100-150 80-150 90-150 100-150
KW 59-110 66-110 74-110 59-110 66-110 74-110
Rotor speed rpm 2203/2356 1833/1960 1833/1960 2203/2356 1833/1960 1833/1960
Pruning residues < < 8 cm < 5 cm < 5 cm < 8 cm < 5 cm < 5 cm
Blades 01 48 56 64 48 56 64
06 24 28 32 24 28 32
Measures A 2548 2959 3186 2548 2959 3186
B 1398 1398 1398 1398 1398 1398
C 550 550 550 550 550 550
Weight KG 790 890 920 790 890 920
