BNU CV/CL Mulcher
Special machines

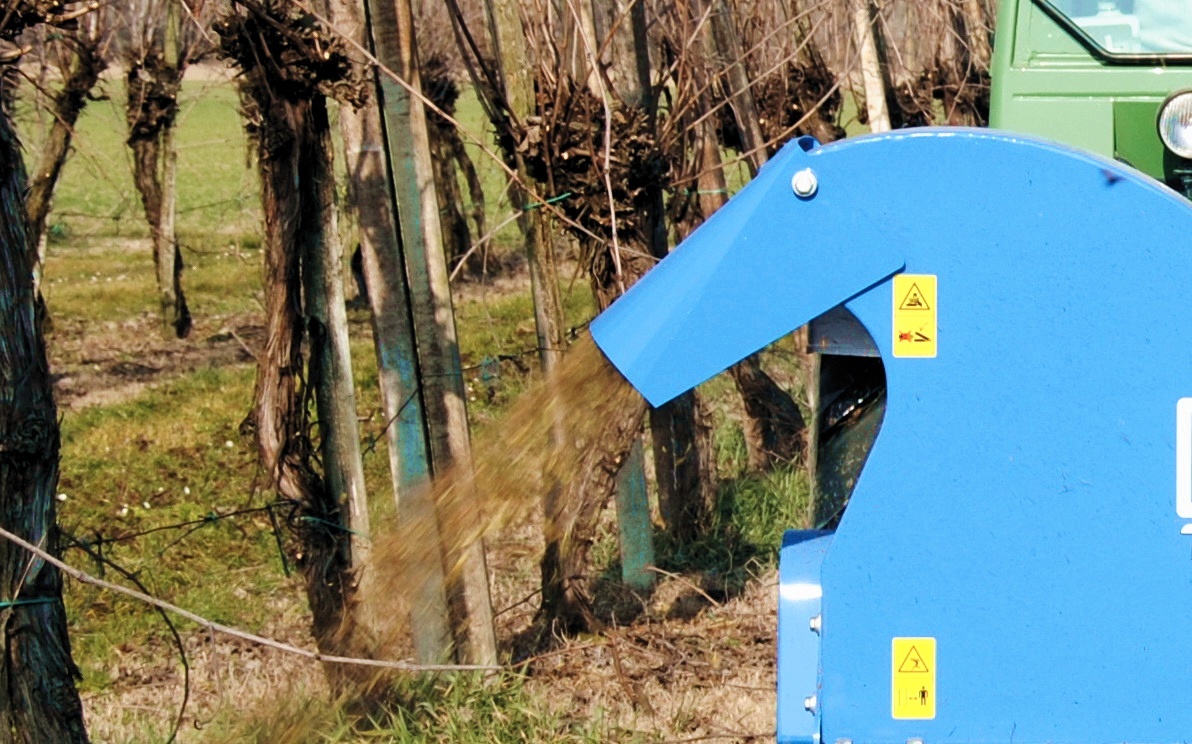

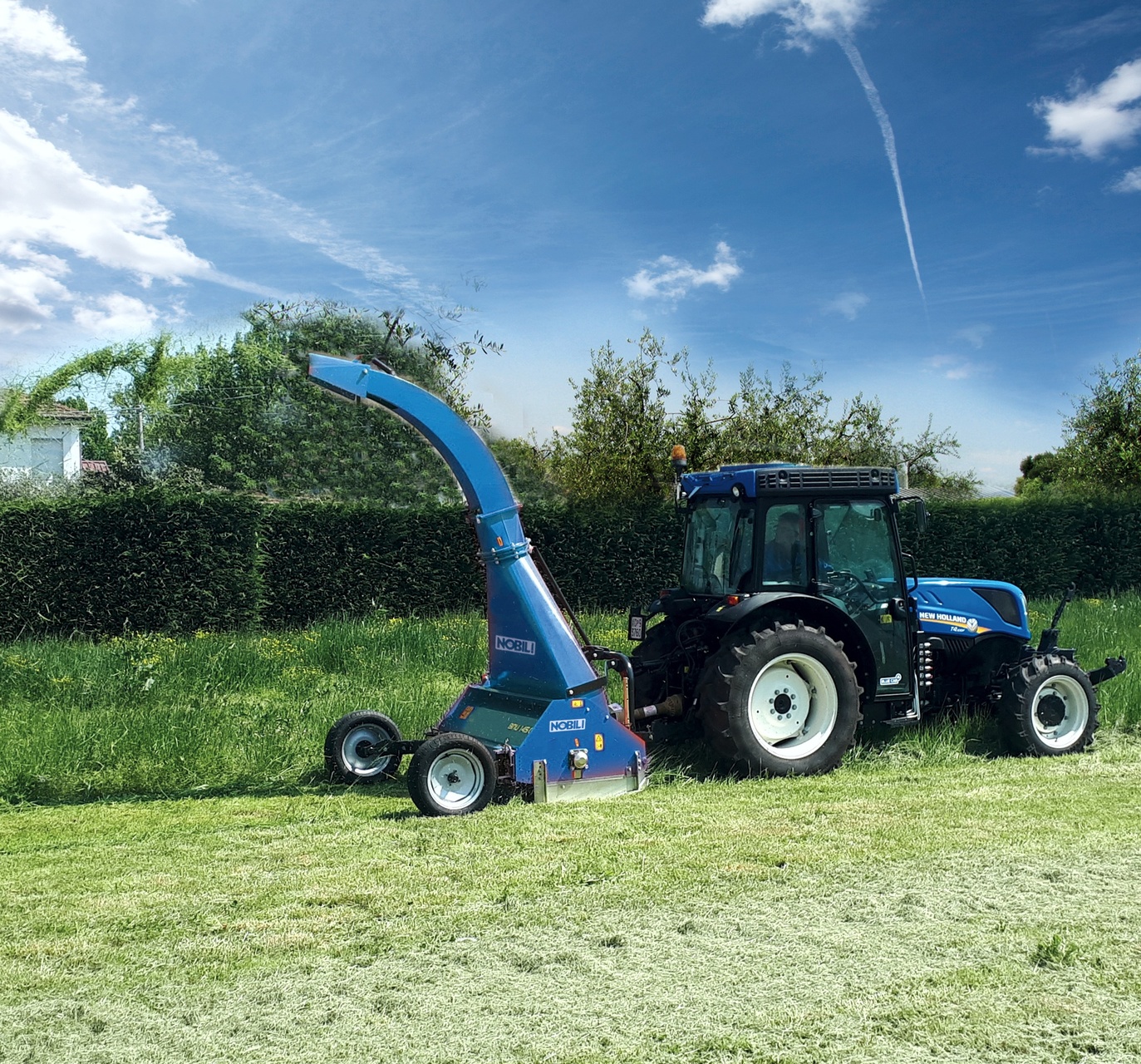

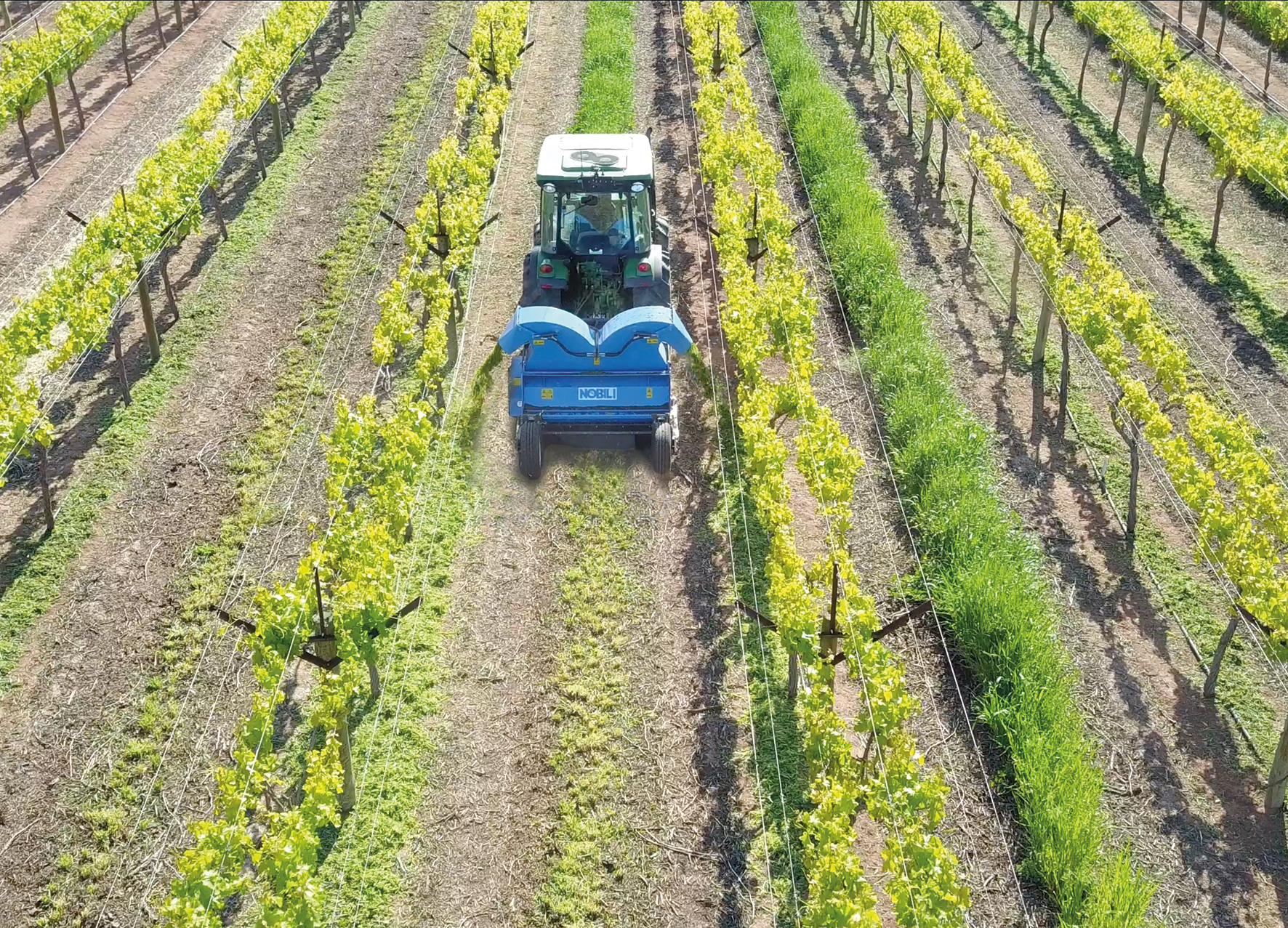

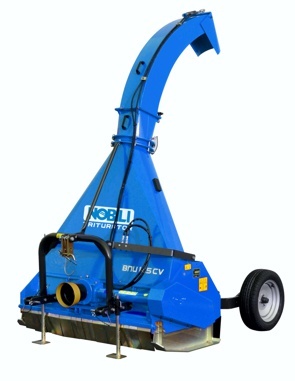

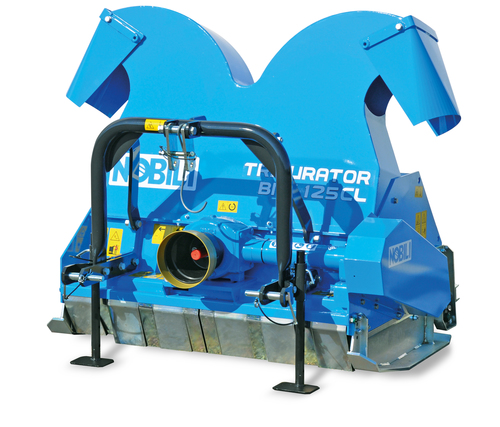

BNU -CV / CL mulchers are tractor-mounted machines to be ftted to the rear tractor three-point linkage. Ideal for the collection and shredding of grass and pruning. BNU-CV mulchers are equipped with a vertical conveyor - with adjustable ending part - specially conceived to deliver the mulched material into a trailer driven by the same tractor or by another one on the sideways row. BNU - CL mulchers give the possibility to discharge mulched product into windrows under plantations trees. BNU-CV / CL mulchers can be equipped with wheels adjusting the working height.Working width: 1100 - 1450 mm.
| Technical features | BNU 125 CL | BNU 145 CL | BNU 145 CV | BNU 195 CL | |
|---|---|---|---|---|---|
| Connecting position | Rear | Rear | Rear | Rear | |
| Lateral displacement | mm | 550 - 550 | 750 - 750 | 750 - 750 | 750 - 750 |
| Working width | mm | 1094 | 1454 | 1454 | 1814 |
| Engine speed pdp | rpm | 540 | 540 | 540 | 540 |
| Tractor horse power | HP | 60-125 | 60-125 | 60-125 | 60-125 |
| KW | 44-92 | 44-92 | 44-92 | 44-92 | |
| Rotor speed | rpm | 2278 | 2278 | 2278 | 2278 |
| Pruning residues | < | < 5 cm | < 5 cm | < 5 cm | < 5 cm |
| Blades | 06 | 12 | 16 | 16 | 20 |
| Measures | A | 1420 | 2000 | 1720 | 2711 |
| B | 990 | 990 | 990 | 990 | |
| C | 1390 | 1390 | 3400 | 1426 | |
| Weight | KG | 590 | 684 | 760 | 795 |
