BNE Mulcher

Application

Green spaces maintenance

Category

Manutenzione del verde
Grass, vine and kiwi pruning
Grass, fibrous and wood stalks, bushes
Shoots
Grass, meadows, parks, gardens

Download the data sheet

Multi-purpose and strong mulchers

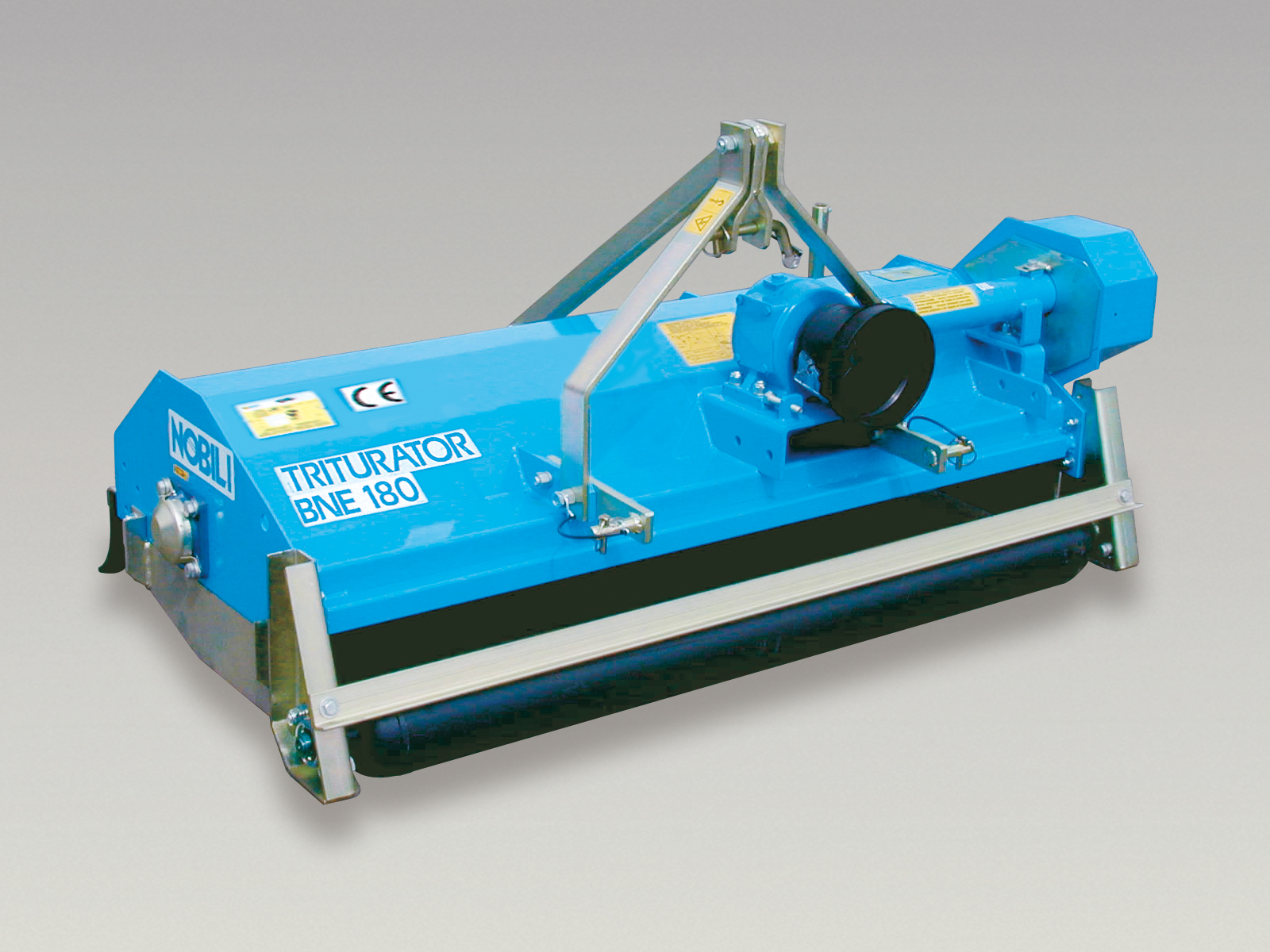

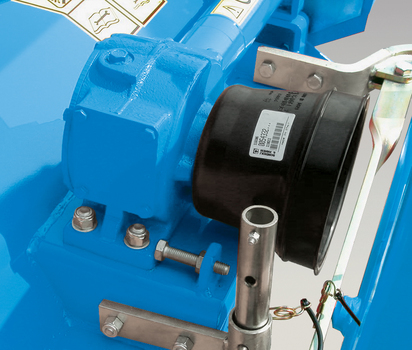

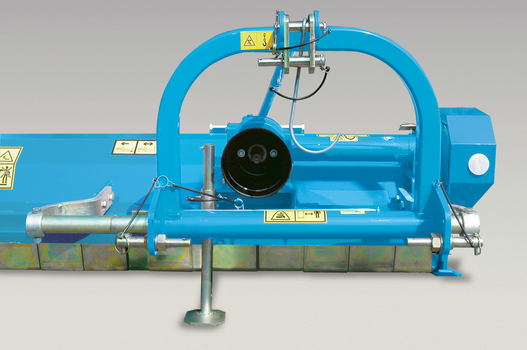

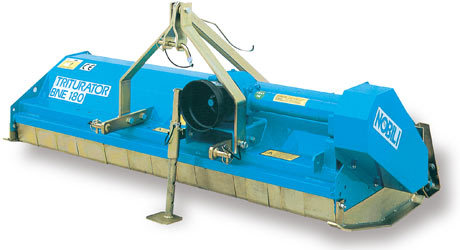

Multi-purpose and strong mulchers ideal for crushing thin pruning wood, vine-shoots, carrot leaves and grass and for the maintenance of meadows, parks and gardens. The BNE 120 - 150 - 180 - 210 series is of the mounted type and fits to the three-point linkage of the front or rear hydraulic lift of the tractor. The gearbox is provided with integrated free wheel. The models 150-180-210 have two fixed connecting positions or may be equipped with axial lateral displacement. Working widths: 1240 - 1520 - 1810 –2100 mm.

Technical features   BNE 120 BNE 150 BNE 180 BNE 210
Connecting position Rear Rear Rear Rear
Lateral displacement mm 620 - 620 760 - 760
390 - 1130
760 - 1060
390 - 1420
760 - 1340
390 - 1710
Working width mm 1240 1520 1810 2100
Engine speed pdp rpm 540 540 540 540
Tractor horse power HP 40-95 40-95 40-95 40-95
KW 29-70 29-70 29-70 29-70
Rotor speed rpm 2207 2207 2207 2207
Pruning residues < < 5 cm < 5 cm < 5 cm < 5 cm
Blades 01 32 40 48 56
04 16 20 24 28
06 16 20 24 28
Measures A 1430 1720 2000 2280
B 750 750 750 750
C 420 420 420 420
Weight KG 350 370 390 410
