BV serie 1000 Mulcher
Mulcher for pruning and branches

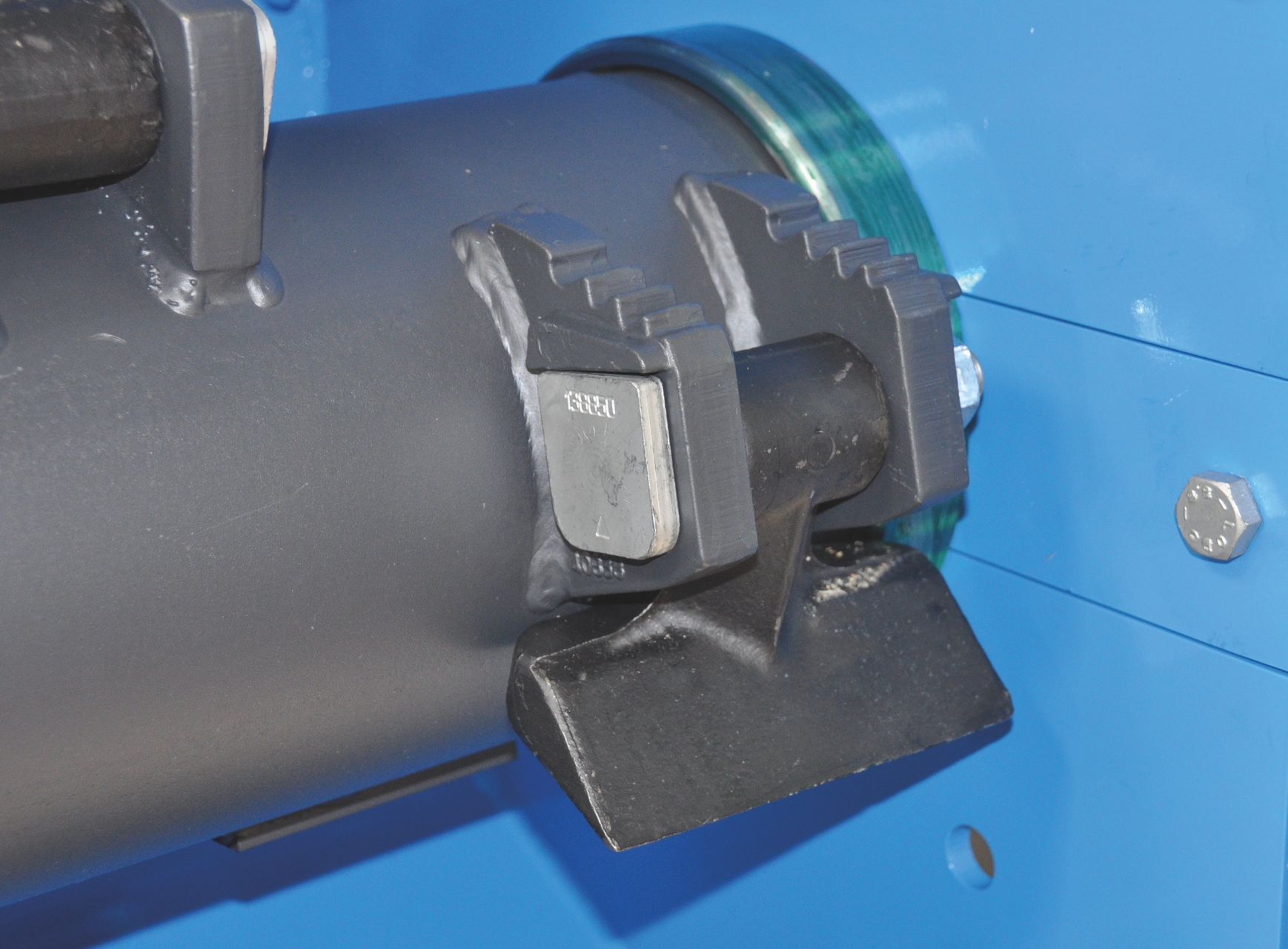

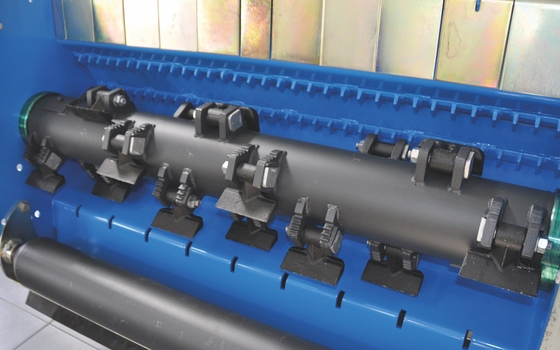

The BV serie 1000 mulchers are mulchers to be fitted to the front and rear three-point linkage of the tractor lift. Ideal to shred large volumes of pruning with big diameter branches, bushes and green areas. BV serie 1000 mulchers are built with overdimensioned components; equipped with heavy hammers, three counter-knives and a rotor with notched tool holders that ensure an optimal shredding quality on wood.Supported by a rear roller with removable ends; collection rakes and front wheels can be fitted as optional equipment. The mulchers BV serie 1000 are equipped with hydraulic axial offset and double hood for maximum robustness and safety in work. The mulcher is constructed in compliance with the European regulations.
| Technical features | BV 1800 | BV 2000 | BV 2200 | BV 2400 | |
|---|---|---|---|---|---|
| Connecting position | Rear | Rear | Rear | Rear | |
| Lateral displacement | mm | 870,5 - 899,5
449,5 - 1320,5 |
960,5 - 989,5
539,5 - 1410,5 |
1029,5 - 1100,5
579,5 - 1550,5 |
1102 - 1303
652 - 1753 |
| Working width | mm | 1721 | 1900 | 2078 | 2331 |
| Engine speed pdp | rpm | 540 | 540 | 540 | 540 |
| Tractor horse power | HP | 70-130 | 75-130 | 80-130 | 85-130 |
| KW | 51-96 | 55-96 | 58-96 | 62-96 | |
| Rotor speed | rpm | 2325 | 2325 | 2325 | 2325 |
| Pruning residues | < | < 10 cm | < 10 cm | < 10 cm | < 10 cm |
| Blades | 06/L | 18 | 24 | 24 | 24 |
| Measures | A | 1947 | 1947 | 2307 | 2550 |
| B | 1300 | 1300 | 1300 | 1300 | |
| C | 1060 | 1060 | 1060 | 1060 | |
| Weight | KG | 900 | 970 | 1040 | 1140 |
